Challenges in Automated Visual Inspection of Lyophilized Vials

The automated visual inspection of lyophilized vials presents several significant hurdles that must be overcome to ensure accurate and reliable results. These challenges stem from the inherent variability of the lyophilization process itself, as well as the complexities of image acquisition and high-throughput requirements.

Variations in Lyophilized Product Appearance

Lyophilized products exhibit considerable variability in appearance, making automated inspection challenging. This variability stems from the inherent complexities of the lyophilization process.

• Differences in cake appearance: Color variations, inconsistencies in texture, the presence of cracks, and even subtle differences in the overall shape of the lyophilized cake can occur.

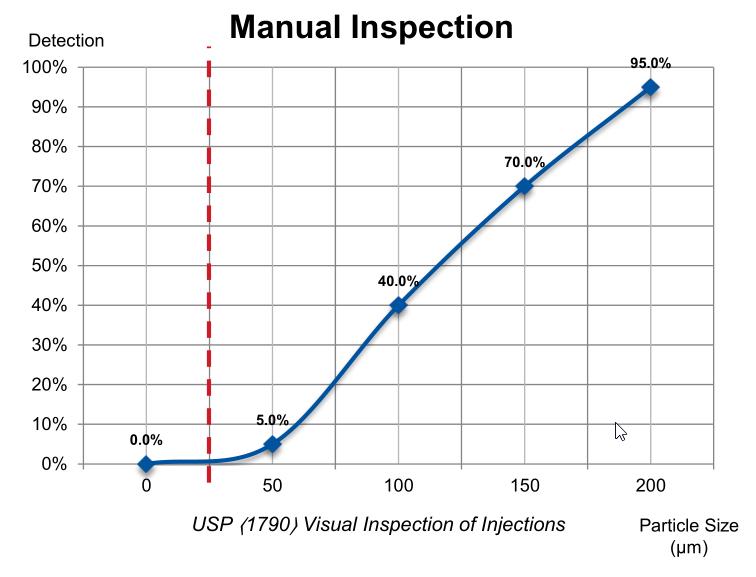

• Particulate matter: The presence of foreign particles within the vial is a critical quality control issue. Detecting these particles against the background of the lyophilized cake requires sophisticated imaging techniques.
• Vial imperfections: Scratches, chips, or other defects on the vial itself can interfere with accurate inspection, potentially leading to false positives or misinterpretations of the lyophilized product.
• Variations in fill level: Inconsistencies in the fill level can be a sign of process issues, and accurate detection requires precise measurement capabilities.

These variations significantly impact automated inspection accuracy. Differentiating between acceptable variations inherent in the lyophilization process and actual defects is crucial. Algorithms need to be sophisticated enough to account for normal variations while flagging genuine defects. This requires a careful calibration of the inspection system and robust image analysis algorithms. The key is to minimize both false positives (rejecting good vials) and false negatives (accepting defective vials).

Lighting and Imaging Challenges

Achieving high-quality images of lyophilized vials presents considerable challenges due to their translucent nature and varying surface characteristics.

• Uniform illumination: Ensuring consistent and even lighting across all vials is critical to avoid shadows and glare that can obscure defects.
• Glare from vial surfaces: The glass surface of the vials can reflect light, causing glare that masks underlying defects.
• Shadows affecting defect detection: Shadows created by the vial itself or by imperfections in the lyophilized cake can interfere with accurate defect identification.
• Selecting appropriate imaging techniques: Choosing the right imaging technique (e.g., visible light, near-infrared (NIR)) is critical for optimal defect detection. NIR, for example, can be beneficial for detecting certain types of particulate matter that are difficult to see with visible light.

Optimizing lighting and camera settings is critical for capturing clear and consistent images. Techniques like coaxial lighting and structured lighting can help mitigate issues with glare and shadows. Careful camera calibration and the use of appropriate filters are also essential for obtaining high-quality images suitable for automated analysis.

High-Throughput Requirements and Speed

Pharmaceutical manufacturing requires high-throughput inspection to keep pace with production demands. Balancing speed with accuracy is a key challenge.

• Need for high-speed inspection: Automated systems must be able to inspect a large number of vials per hour to avoid bottlenecks in the production line.
• Balancing speed with accuracy: Increasing inspection speed should not come at the cost of accuracy, as this can lead to product recalls or compromised patient safety.
• Challenges in handling large numbers of vials efficiently: Efficiently handling and positioning large numbers of vials for inspection requires robust robotic handling systems.

High-speed cameras and advanced image processing algorithms are necessary to meet these requirements. Robotic systems play a crucial role in automating the handling and presentation of vials for inspection. Optimization of the entire workflow, from vial handling to data analysis, is vital to achieve both high throughput and accuracy.

Solutions for Automated Visual Inspection of Lyophilized Vials

Addressing the challenges of automated visual inspection of lyophilized vials requires a multifaceted approach that combines advanced imaging techniques, optimized lighting and camera systems, and robust data analysis capabilities.

Advanced Imaging Techniques

Utilizing advanced imaging techniques significantly improves defect detection and minimizes errors.

• Hyperspectral imaging: This technique captures images across a wide range of wavelengths, providing spectral information that can be used to identify defects not visible to the naked eye.
• Multispectral imaging: Similar to hyperspectral imaging but with fewer wavelengths, offering a good balance between information content and speed.
• Machine learning algorithms: Employing machine learning for image analysis allows for the automated classification of defects and improved accuracy over time. Algorithms learn to differentiate between acceptable variations and true defects.

The combination of advanced imaging and machine learning provides a powerful approach to addressing the variability inherent in lyophilized products. These methods enable the identification of subtle defects that would be missed by traditional methods.

Optimized Lighting and Camera Systems

Specialized lighting and high-resolution cameras are vital for capturing high-quality images.

• Coaxial lighting: This technique minimizes glare and shadows by illuminating the vial from directly above.
• Structured lighting: Using structured light patterns can enhance the three-dimensional information captured in the images, improving defect detection.
• Polarization filters: These filters can help reduce glare and improve contrast.
• Advanced camera sensors: High-resolution cameras with high sensitivity are essential for capturing detailed images.

Careful optimization of the lighting and camera system is crucial for minimizing the impact of glare and shadows, thereby enhancing the accuracy and reliability of the inspection process.

Robust Data Analysis and Reporting

Comprehensive data analysis is essential for process control and regulatory compliance.

• Statistical process control (SPC): Using SPC charts allows for the monitoring of process variability and the timely identification of potential problems.
• Data visualization tools: Effective data visualization tools enable easy interpretation of inspection results and trends.
• Automated defect classification: Automated systems can classify defects based on type and severity, providing valuable information for process improvement.
• Reporting and traceability: Automated systems should generate detailed reports with complete traceability, ensuring regulatory compliance.

Robust data analysis and reporting capabilities provide valuable insights into the lyophilization process, allowing for continuous improvement and ensuring the highest level of product quality.

Conclusion

Automated visual inspection of lyophilized vials is critical for maintaining product quality and meeting stringent regulatory requirements. While challenges related to product variability, imaging complexities, and high-throughput demands exist, advancements in imaging technologies, lighting solutions, and data analysis techniques offer effective solutions. Implementing advanced automated visual inspection systems significantly improves efficiency, accuracy, and consistency in the inspection process, ultimately ensuring the delivery of high-quality lyophilized products. To optimize your lyophilized vial inspection process and ensure superior product quality, explore the latest advancements in automated visual inspection technologies today.
